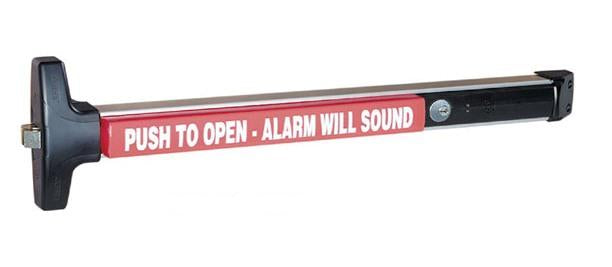

Detex V-40xEBxW Rim Panic Exit Device Standard Door Stile With Exit Alarm Weatherproof 36"
Regular price
$846.20
Regular price
-9%
$929.88
Sale price
$846.20
Couldn't load pickup availability
Got questions? Talk to a product expert.
Detex V-40xEBxW Rim Panic Exit Device With Exit Alarm. Available With Multiple Options. Weatherproof.
The V40 Series rim exit device is secure and durable panic exit hardware at an economical price. It is designed for use on all types of single and double doors with mullions. The patented mounting plate and strike locator system ensures the easiest and most accurate installation of panic hardware available.
FEATURES
- Patented mounting plate and strike locator
- Covers a 161 door prep
- Stainless steel, 3/4" deadlocking Pullman-type latch bolt
- Non-handed
- Field sizeable
- 1/8 turn hex key dogging
- Heavy-duty angled end cap
- High impact ABS and anodized surfaces
- Withstands over 1400 lbs. of static pull force for greater security
- Modular design accepts a variety of outside trims and functions
- Keyless Locks available
TECHNICAL INFORMATION
- Door Types-Wood, Hollow, Metal Fiberglass or Aluminum
- Door Thickness-Fits Standard 1 -3/4" – 2 1/4"
- Standard Door Stile-Fits 3" or greater stile doors with 99 surface strike (Std.) 2 1/2" minimum width needed for installation
- Machine and Self-Drilling Screws (Std.)
- Mortise Cylinder NOT Included
- Standard Yale Type Cam Required
Lengths: Available For a 36" Door or a 48" Door
Finishes: 628 Aluminum/with Black Or 711 All Black
Finishes: 628 Aluminum/with Black Or 711 All Black
Free Shipping within Contiguous US
- SKU LSPB-40xEBxW-36
Place your order by 2 PM and it will ship for next business day delivery in most cases. We utilize reliable 24-hour carrier services whenever available to help ensure your order arrives on time.
A minimum order of $99 is required. Orders meeting this minimum qualify for standard shipping rates. Additional charges may apply for deliveries to remote or hard-to-reach areas, as determined by the carrier.
Lockey Store does not handle product warranties directly. All warranties, if applicable, are provided and administered by the manufacturer.
Warranty terms, coverage, and claims are subject to the manufacturer’s policies. For warranty support, customers must contact the manufacturer directly with proof of purchase.
