Lockey Hydraulic Gate Closer TB175
Regular price
$62.18
Regular price
-30%
$88.82
Sale price
$62.18
Couldn't load pickup availability
Got questions? Talk to a product expert.

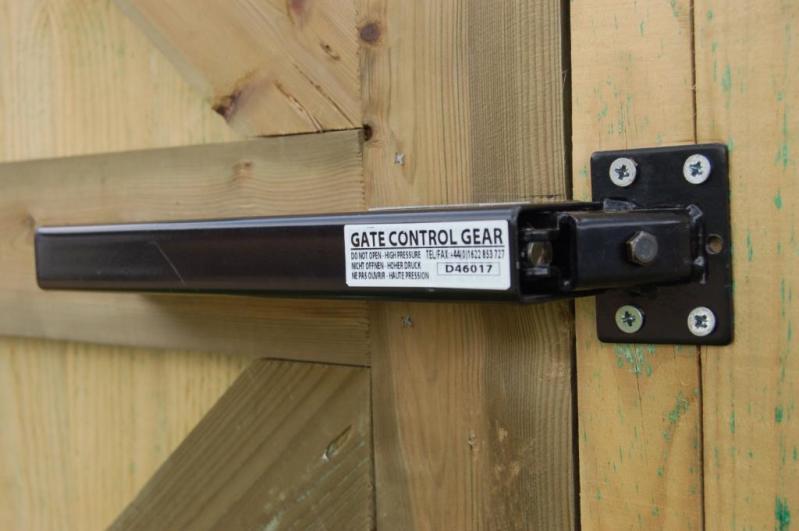

Lockey Hydraulic Gate Closer TB175 fits most flush gate and frame arrangements where the gate weight is up to 125 lbs and width is no more than 54 inches. Both the travel and latching speeds are fully adjustable, ensuring gates close in a controlled manner. These closers are particularly suited to garden gates, picket gates, barrier gates and lightweight doors (NON FIRE RATED).
No special skills are required to install the gate closes, as detailed step-by-step instructions are included. In performance tests, the TB175 has achieved 100,000 cycles. Fits Gates Up To 110 LBS And 54" Wide.
Features
Flush mount closer
Closes gates up to 110 lbs. easily and gently
Will work with most in-line hinge arrangements.
Complies with most pool gate safety recommendations
Adjustable closing speed
Adjustable latching speed
Hold open feature
Installs on top, middle or bottom of either right or left hand of gate
Mounts on opening side of gate, pushing it closed
The TB175 may not be compatible with offset hinge arrangements or arrangements that create more than 2″ between gate post and gate, as it is critical to mount the closer as close as possible to the gate’s pivot point.
To retain product warranty & restrict gate opening angle, a gate stop must be installed
Dimensions & Specifications
Color: Black
Dimensions: 12 1/2″ L x 2 1/2″ W x 2 3/8″ D
Max. Gate Weight: 110 lbs.
Max. Gate Width: 54″
Max. Opening Angle: 90 degrees
Type of Gate Material: Metal, Vinyl, Wood
Closing/Latching: Adjustable
Material: Steel
Finish: Powder coated
Hinge Arrangements: In-line
Opening Pressure: Variable depending on gate size
