Home » Lockey PB1100 Touch Bar Rim Panic Exit Device Painted Aluminum Finish 48" Door
Lockey USA

Lockey PB1100 Touch Bar Rim Panic Exit Device Painted Aluminum Finish 48" Door

SKU: LSPB-1142AL
$194.12
-30% $277.32 $194.12
In stock

Got questions? Talk to a product expert.

Chat Email +1 (888) 508-0585

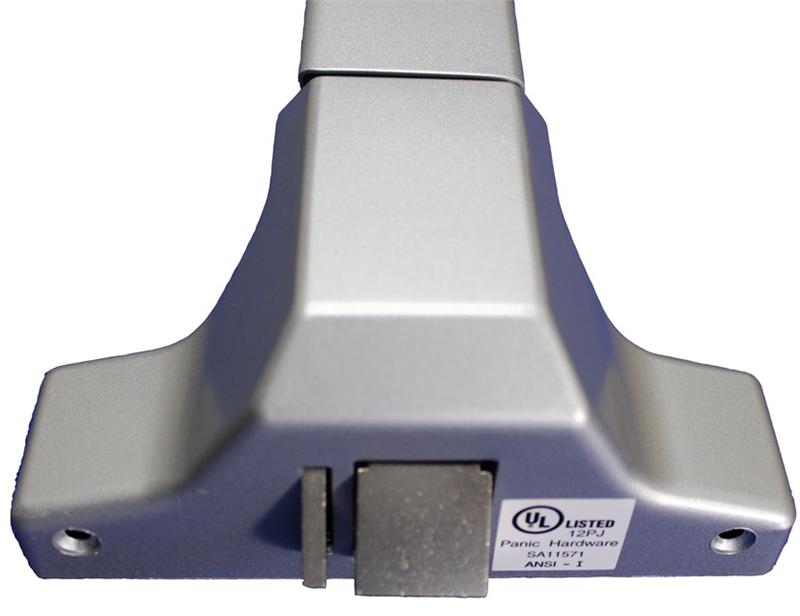

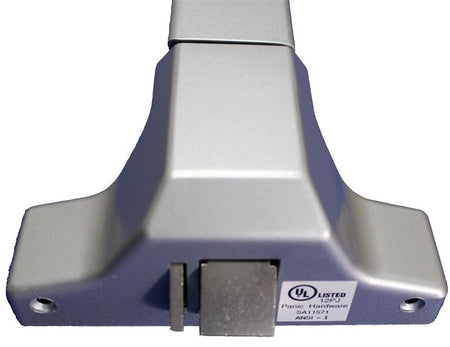

Lockey PB1100 touch bar style exit device is suitable for all doors (aluminum, hollow metal and wood) where there is no projection on the face. Can Be Used On Narrow, Medium And Wide Stile Aluminum Doors. A rim cylinder is not included and the PB1100 can be used in conjunction with any of the panic trims listed below.
Technical Information:
- ANSI/BHMA A156.3 Series Grade 1 Certified
- Complies with ANSI A117.a ADA requirements
- UL/cUL Listed
- Narrow Stile 2 1/2 - Door Thickness: 1 3/4 (standard)
- Device Length: 42 (48 doors)
- Field-sizable
- Latch Bolt: Stainless Steel powder metallurgy with 11/16 throw
- Deadlocking Latch: Stainless Steel powder metallurgy with 9/16 throw
- Weather resistant
- Aluminum Finish
